ColdChain Complete Product Overview
ColdChain Complete indicators are a single-use visual indicators that provide accurate, irreversible evidence of a temperature excursion created to help our customers monitor for cold and hot temperature excursions.
The ColdChain Complete line of solutions from SpotSee is a cost-effective solution to monitor temperature-sensitive products. They are a single-use visual indicator that provides accurate, irreversible evidence of a temperature excursion, created to help our customers monitor for cold and hot temperature excursions. It is available in two formats: the standard ColdChain Complete and ColdChain Complete XS.
Specifications
| Temperature Accuracy | ±2°F | ±1°C for both freeze and warm indicators |
| Storage Conditions | Store in dark environment between 59°F and 77°F | 15°C and 25°C, 35-55% RH |
| Shelf Life | 1 year |
| Arming Method | Freeze Indicator: none / Warm Indicator: Pull-tab |
| Mounting Method |
ColdChain Complete: place the indicator as close to the product being monitored as possible. ColdChain Complete XS: adhere or place indicator as the product being monitored as possible. |
Part Numbers

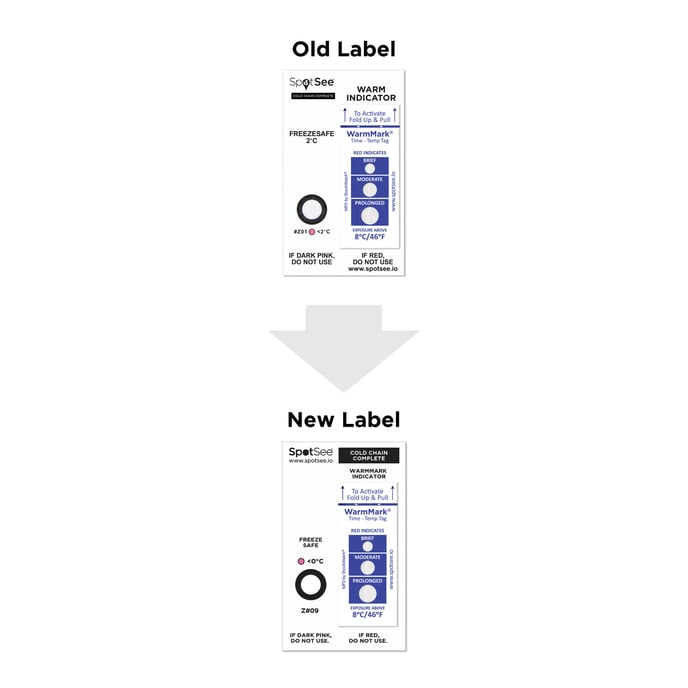

ColdChain Complete: Freeze & 3 Window Warm Indicator Card
| Part Number | Temperature Range | Run Out Brief |
Run Out Moderate |
Run Out Prolonged |
Freeze Activation Within |
| 27178 | 2°C - 8°C / 36°F-46°F | 2 Hours | 12 Hours | 48 Hours | 90 Minutes |
| 27179 | 0°C - 8°C / 32°F- 46°F | 2 Hours | 12 Hours | 48 Hours | 60 Minutes |

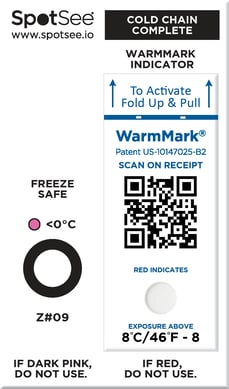

ColdChain Complete: Freeze & Single Window Warm Indicator Card
| Part Number | Temperature Range | Run Out Brief |
Run Out Moderate |
Run Out Prolonged |
Freeze Activation Within |
| 27180 | 0°C - 25°C / 32°F - 77°F | -- | -- | 8 Hours | 60 Minutes |
| 27182 | 2°C - 25°C / 36°F - 77°F | -- | -- | 8 Hours | 90 Minutes |
| 27183 | 0°C - 8°C / 32°F - 46°F | -- | -- | 8 Hours | 60 Minutes |
| 27184 | 2°C - 8°C / 36°F - 46°F | -- | -- | 8 Hours | 90 Minutes |

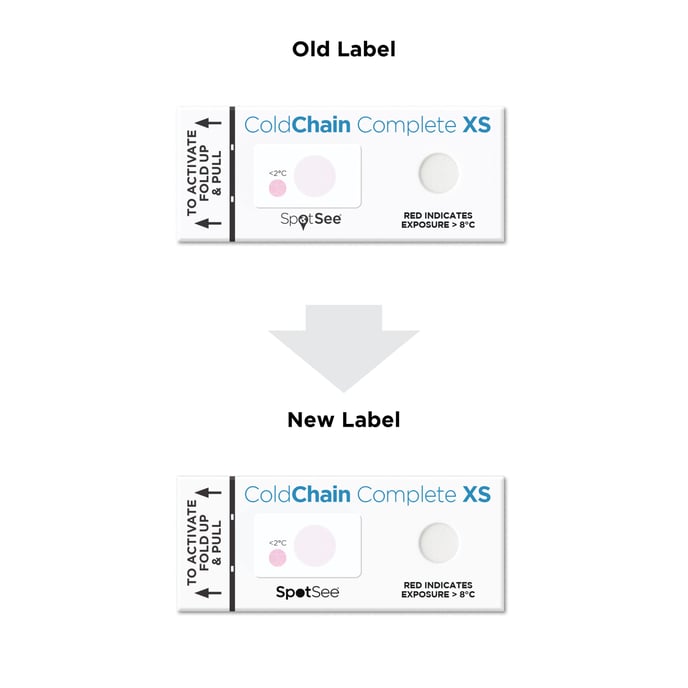

ColdChain Complete XS: Freeze & Single Window Warm Indicator
| Part Number | Temperature Range | Run Out Brief |
Run Out Moderate |
Run Out Prolonged |
Freeze Activation Within |
| CCC XS 2-8-8 | 2°C - 8°C / 36°F - 46°F | -- | -- | 8 Hours | 90 Minutes |
| CCC XS 0-8-8 | 0°C - 8°C / 32°F - 46°F | -- | -- | 8 Hours | 60 Minutes |
| CCC XS 2-8-48 | 2°C - 8°C / 36°F - 46°F | -- | -- | 48 hours | 90 Minutes |
| CCC XS 0-8-48 | 0°C - 8°C / 32°F - 46°F | -- | -- | 48 Hours | 60 Minutes |
| CCC XS 0-25-8 | 0°C - 25°C / 32°F - 77°F | -- | -- | 8 Hours | 60 Minutes |
| CCC XS 2-25-8 | 2°C - 25°C / 36°F - 77°F | -- | -- | 8 Hours | 90 Minutes |
