ShockDot Product Overview

ShockDot provides a cost-effective solution with the largest indicator window for determining mishandling, alerting handlers that your package requires extra care and reducing damage-related costs.

10, July, 2025

We would like to inform you that all ShockDot models are being discontinued.

  • Final Order Date: August 31, 2025

We encourage you to place any final orders as soon as possible to ensure availability.

Replacement Options:
We recommend the following alternatives:

If you need assistance selecting a suitable replacement or have any questions, please don’t hesitate to contact us.

Tamperproof, mechanically activated devices, ShockDot indicators turn red when a potentially damaging impact occurs. Each indicator is serialized and ensures the user that the device has not been switched during transport. The QR code on each device allows you to verify the authenticity of the indicator and provides peace of mind that you have received an impact indicator from the impact detection experts at ShockWatch.

ShockDot indicators are a simple solution for identifying potentially damaged shipments and driving accountability in the supply chain.

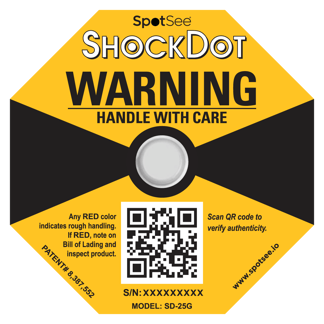

ShockDot_25G_Unactivated

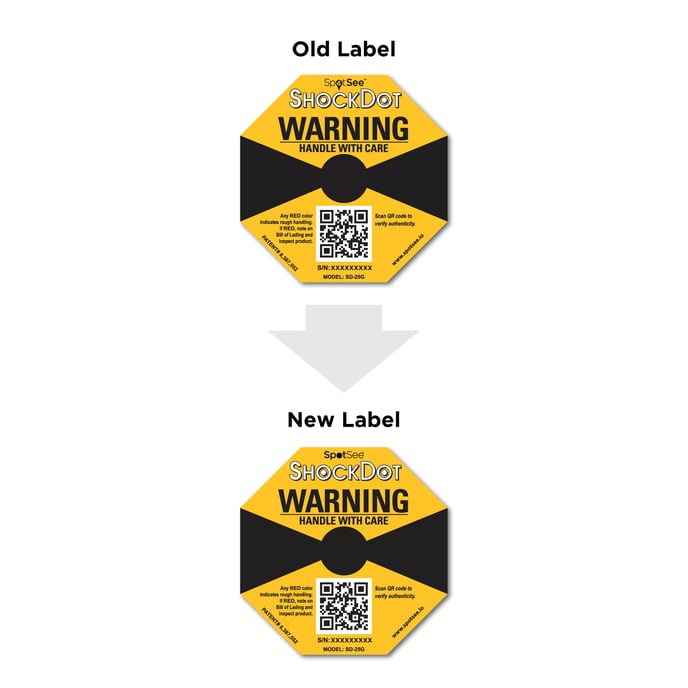

Product Change Notice

  • Logo Update

ShockDot_OLD vs NEW_Image




SPECIFICATIONS



Sensitivity Range

 25 – 100G
Impact Duration 0.5 – 50 ms
Tolerance ±15% at 68°F | 20°C , 1 ATM
Operating Temperature -13°F to 140°F | -25°C to 60°C
Weight 0.07 oz | 1.98 g

Dimensions

 3.8 in x 3.8 in | 96.52 mm x 96.52 mm

Shelf Life

 2 years from date of sale when stored at standard temperature and pressure (30°C | 68°F, 1 ATM)

Part Numbers

100G – Green SD-100G
75G – Orange SD-75G
50G – Red SD-50G
37G – Purple SD-37G
25G – Yellow SD-25G


Product Page

Selection Guide

  0 – 1 ft³
0-.03m³		 1 – 5 ft³
.03-.14m³		 5 – 15 ft³
.14-.42m³		 15 – 50 ft³
.42-1.42m³		 50+ ft³
1.42+m³
0 – 10 lbs
0-4.56 kg		 SD-100G (Green) SD-100G (Green) SD-75G (Orange) SD-75G (Orange) SD-75G (Orange)
10- 25 lbs
4.56-11.34 kg		 SD-100G (Green) SD-75G (Orange) SD-75G (Orange) SD-50G (Red) SD-50G (Red)
25 – 50 lbs
11.34-22.68 kg		 SD-75G (Orange) SD-75G (Orange) SD-50G (Red) SD-50G (Red) SD-37G (Purple)
50 – 100 lbs
22.68-45.36 kg		 SD-75G (Orange) SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-37G (Purple)
100 – 250 lbs
45.36-113.40 kg		 SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-37G (Purple) SD-25G (Yellow)
250 – 1,000 lbs
113.40-453.59 kg		 SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-25G (Yellow) SD-25G (Yellow)
1,000+ lbs
453.59+ kg		 – SD-37G (Purple) SD-25G (Yellow) SD-25G (Yellow) SD-25G (Yellow)
