ShockLog 248 Impact Recorder & Data Logger Product Overview

ShockWatch ShockLog® 248 monitors and records impact and environmental conditions experienced by any type of structure or equipment, whether in use, transit, or storage.

ShockWatch ShockLog® 248 monitors and records impact and environmental conditions experienced by any type of structure or equipment, whether in use, transit, or storage. The device alerts you when damage may have occurred, so you can respond promptly. ShockLog impact recorders help deter mishandling by increasing accountability at every step of the journey.

The iButton® allows for easy access control during startup, shutdown, and setup. A full journey report can be downloaded using the iButton while keeping the unit secure and tamper-proof.

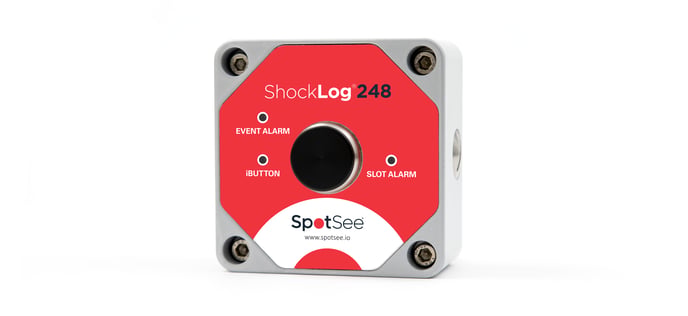

ShockLog 248_Image_Front

Product Change Notification

  • Logo Change

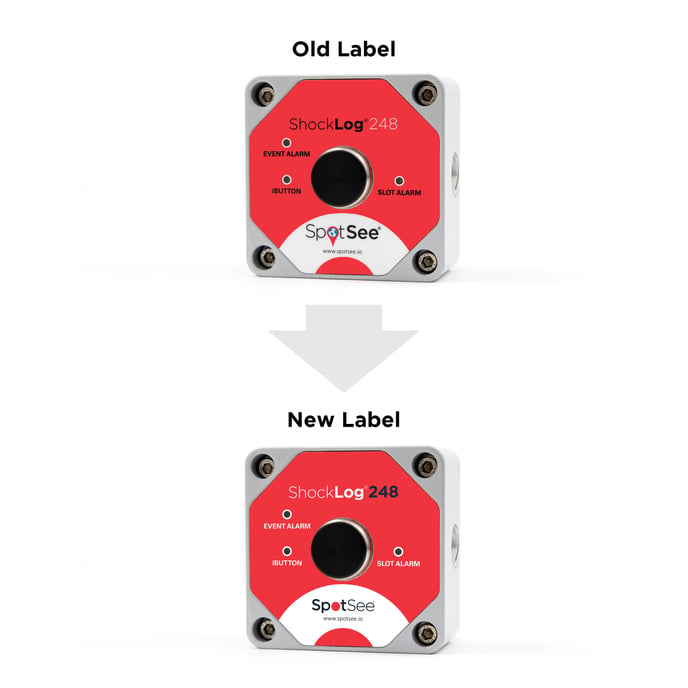

    ShockLog 248_OLD vs NEW_Image

Specifications

Operating Temperature Range -40°F to 185°F | -40°C to 85°C
Size 3.3 in x 3.3 in x 2.2 in | 84 mm x 84 mm x 55 mm
Weight 1.1 lbs (without battery) | 445g (without battery)
Battery One (1) 3.6V Lithium Thionyl Chloride OR One (1) 1.5V Alkaline Size AA
Battery Life 12 months
Scale Factor ±2%

Acceleration Range (Factory Set)

 ±10G, ±30G, ±100G
Cut-off Frequency Options 40 Hz, 90 Hz, and 250 Hz
Warning and Alarm Threshold (% of Range) 11–95%
Wake-Up Time 0.25 mS
Humidity 0–100% RH
Temperature -40°F to 185°F | -40°C to 85°C
Dew Point -40°F to 185°F, 0–100% RH | -40°C to 85°C, 0–100% RH
