ShockLog Cellular Product Overview

The ShockLog® Cellular combines the powerful monitoring capabilities of the ShockLog 298 impact recorder with a cellular communication module to deliver real-time notifications of unacceptable handling in the supply chain.

The ShockLog® Cellular combines the powerful monitoring capabilities of the ShockLog 298 impact recorder with a cellular communication module to deliver real-time notifications of unacceptable handling in the supply chain.

This easy-to-use device utilizes a proprietary piezoelectric accelerometer designed and manufactured by SpotSee that provides industry-leading impact analysis with the lowest noise floor on the market.

Get alerts in real-time when your shipment has experienced an out-of-tolerance impact, temperature, humidity, tilt, or roll condition. The information is accessible 24/7 via the user-friendly SpotSee Cloud from anywhere in the world.

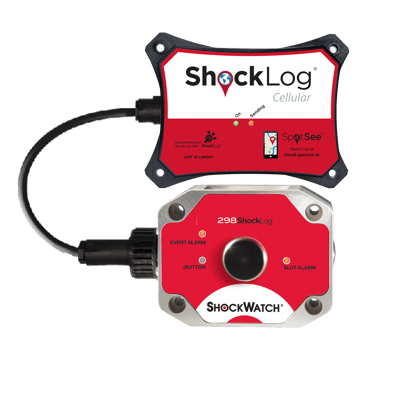

ShockLog Cellular

Cloud Access Migration Notice

On April 26, 2024, we will be migrating our cloud solution from cloud.spotsee.io to track.spotsee.io.

During the migration, we will transfer your historical data from the past six months to your account to the new platform.

The new solution will give you additional features, including:

  • Improved user experience
  • Ability to monitor all SpotSee connected devices in one place– ShockLog Cellular, ShockLog Satelite, and SpotBot 4G Plus
  • Easier configuration settings
  • Improved performance and reliability

We have built a resource page to help you answer any questions – info.spotsee.io/track. There, you will be able to access all relevant links, product manuals, and information.

On Thursday, April 25th, you will be receiving an email with your new login information.

Specifications

Operating Temperature Range 22°F to 140°F
Size 7.00 in x 11.35 in x 2.20 in
Weight 3.404 lbs
Battery 2 x 3.6V AA Lithium (ShockLog)
6 x 1.5V Lithium AA Batteries (Cellular Module)
Battery Life Up to 37 months (ShockLog) / 90+ days (Cellular Module)
Scale Factor ±2%
Additional Error Other Ranges ±2%
Acceleration Range (Factory Set) ±1 to ±200G
Cut-off Frequency Options (Programmable) 10Hz, 40Hz, 50Hz, 90Hz, 120Hz, and 250Hz
Wake-up, Warning, and Alarm Threshold (% of Range) 5–95%
Wake-Up Time 0.25 mS
External Power Source Option 4.5V min / 30V max
Sample Rate 496 samples per second
Connectivity Global Cellular 3G / 2G Fall Back
Software Compatibility Windows 10, 8, 7, Vista, XP
