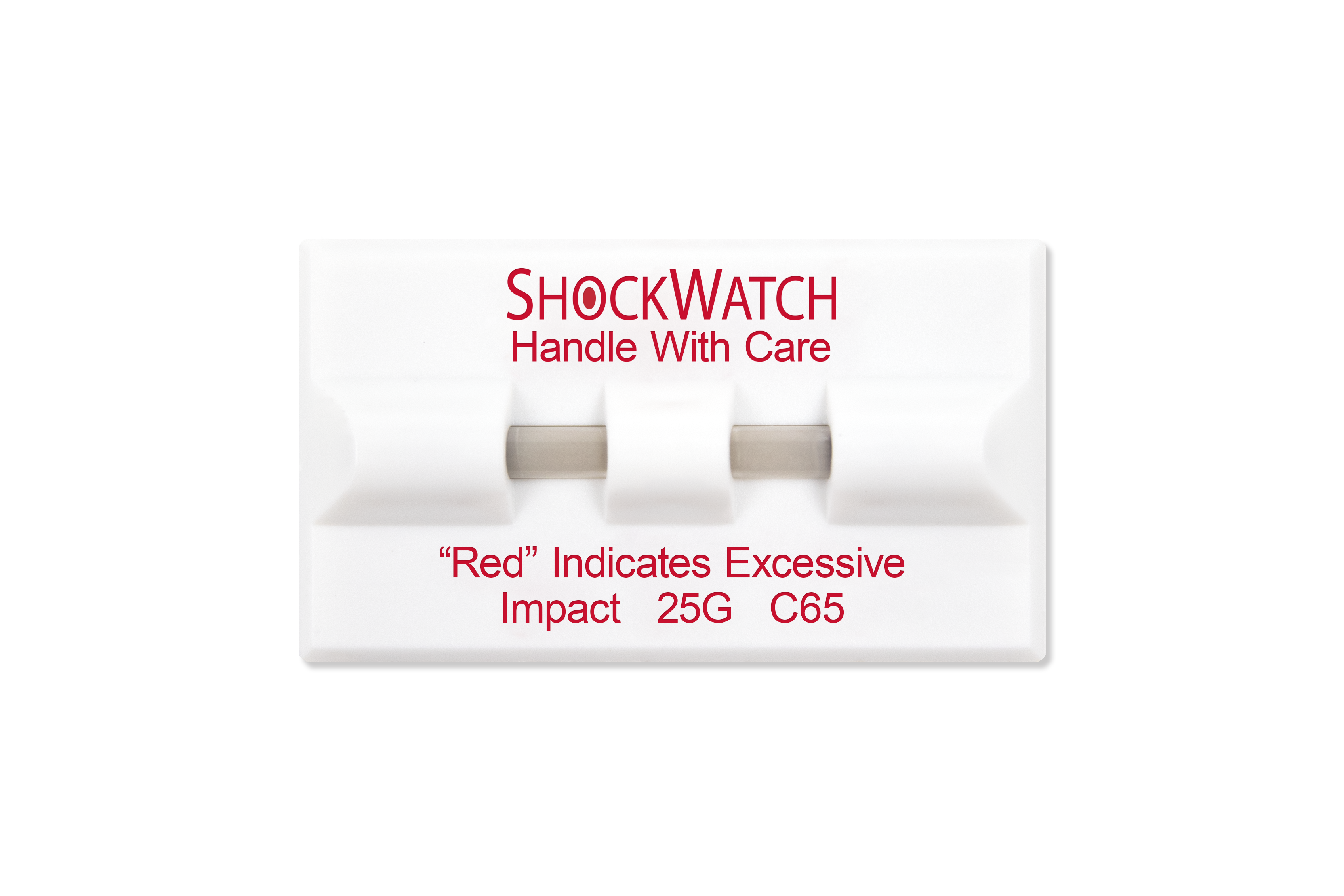

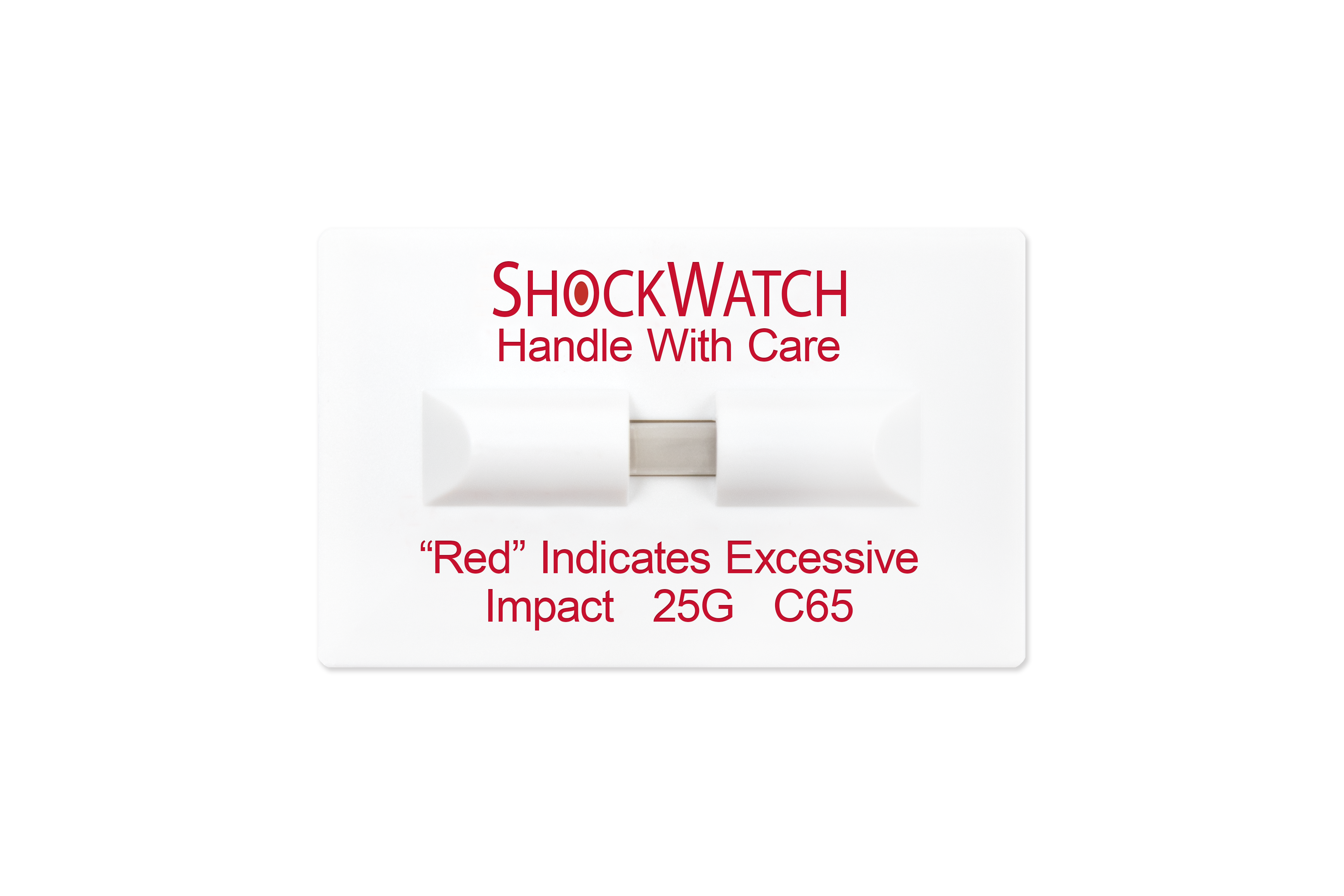

ShockWatch Clip Product Overview

ShockWatch Clip impact indicators are tamperproof devices that turn bright red to indicate mishandling. These impact indicators can be mounted directly to products to understand the conditions experienced.





ShockWatch Clips are designed to protect products up to 500 cubic feet in volume and weighing up to 10,000 pounds. Other indicators and recorders are available from ShockWatch for additional sensitivities and monitoring requirements.

Specifications

Sensitivity Range 10G, 15G, 25G, 37.5G, 50G, 75G, 100G, (Multi-G – 25G / 50G / 75G)

Impact Duration

 0.5 – 50 ms
Tolerance ±15% at 68°F | ±15% at 20°C, 1 ATM
Operating Temperature -13°F to 176°F | -25°C to 80°C
Adhesive Acrylic
Shelf Life 2 years when stored at 68°F | 20°C, 1 ATM

Product Page

Selection Guide

Product Name Sensitivity
85MC, CX85, 85MCD, CXX85 10G
75MC, CX75, 75MCD, CXX75 15G
65MC, CX65, 65MCD, CXX65 25G
55MC, CX55, 55MCD, CXX55 37.5G
47MC, CX47, 47MCD, CXX47 50G
35MC, CX35, 35MCD, CXX35 75G
30MC, CX30, 30MCD, CXX30 100G
Multi-G Clip 25G, 50G, 75G (Standard)
