ShockWatch Flex Product Overview

ShockWatch Flex impact indicators are tamperproof devices that turn bright red to indicate mishandling. The Flex is optimized for mounting an impact indicator to an irregularly shaped surface.

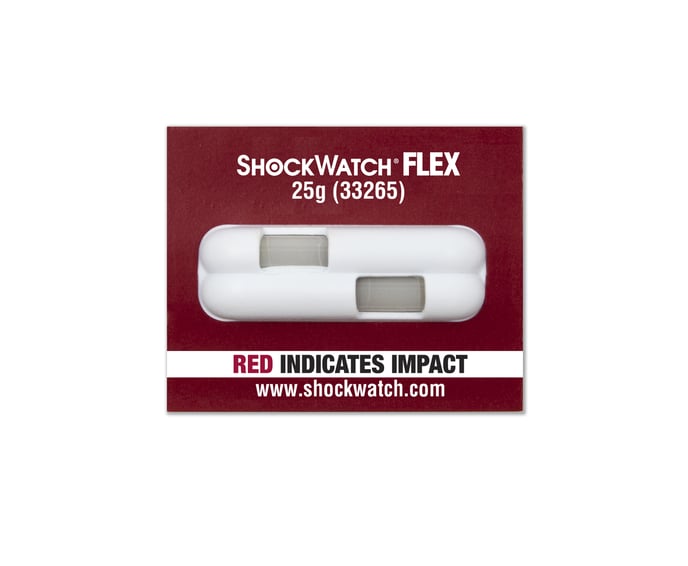

ShockWatch Flex_25G_Image A_FINAL

These indicators can be used to understand the conditions experienced by a product even when it is outside protective packaging. The Flex may be embedded into a product design or attached to the exterior of products.

The Flex is ideal for monitoring tools that may become misaligned, equipment that may lose their calibration, or products that may be damaged with mishandling.



Specifications

Operating Temperature Range -13°F to 176°F | -25°C to 80°C

Size (Single Clip/Double Clip)

1.28 in x 0.9 in / 1.28 in x 1.04 in

32.52 mm x 22.86 mm / 32.52 mm x 26.42 mm
Responsiveness Responds to single-impact
Duration Responds to single-impact
Adhesive Acrylic
Shelf Life  2 years from date of sale, when stored at standard temperature and pressure (68°F | 20°C, 1 ATM)

Selection Guide

  Sensitivity Product Name
2in to 4in 10G Flex 85
3in to 6in 15G Flex 75
4in to 8in 25G Flex 65
6in to 14in 37G Flex 55
8in to 18in 50G Flex 47
19in to 24in 75G Flex 35
24in to 30in 100G Flex 30
