ShockWatch RFID Product Overview
With the ShockWatch® RFID (radio-frequency identification) tag, it’s nearly impossible for items damaged by impacts to get past the supply chain. Simply choose the appropriate impact threshold and affix the ShockWatch RFID tag.
With the ShockWatch® RFID (radio-frequency identification) tag, it’s nearly impossible for items damaged by impacts to get past the supply chain. Simply choose the appropriate impact threshold and affix the ShockWatch RFID tag. Then, each time that a package or asset is remotely scanned by an RFID reader, its condition is entered automatically into the enterprise resource planning (ERP) software or warehouse management system. Seeing the indicator is no longer necessary as it is automatically registered in your system. By combining traditional RFID inventory management with impact-damage monitoring, managers can use their existing ultra-high frequency (UHF) RFID infrastructure to Deter, Detect, and Diagnose damage throughout the supply chain.

Product Change Notice

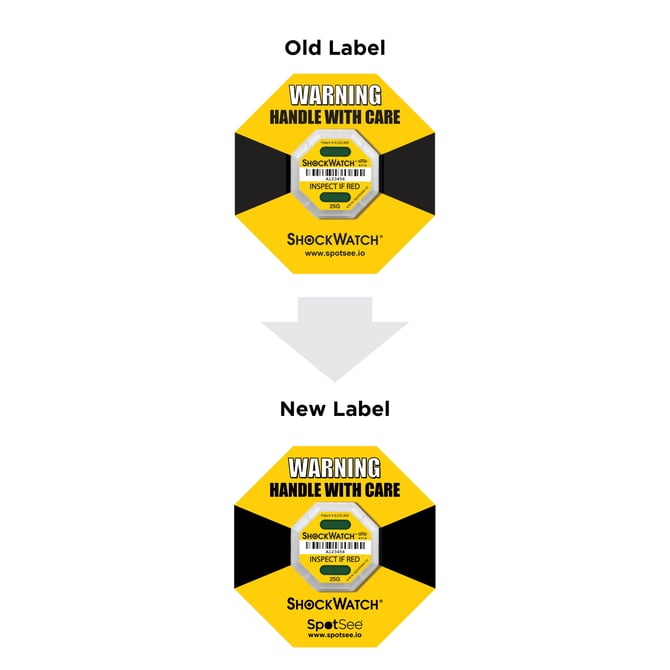

Ring Label
- Logo Update

SPECIFICATIONS
| Sensitivity Range | 5G, 10G, 15G, 25G, 37G, 50G, 75G |
| Duration | 0.5 - 50 ms |
| Tolerance | ±15% |
| Operating Temperatures | -13°F to 176°F | -25°C to 80°C |
| Shelf Life | 2 years when stored at standard temperature and pressure (68°F | 20°C, 1 ATM) |
| Size | 1.69 in x 1.69 in x 0.25 in | 42.93 mm x 42.93 mm x 6.35 mm |
Part Numbers
| ShockWatch RFID – 5G | SWRFID-5G |
| ShockWatch RFID – 10G | SWRFID-10G |
| ShockWatch RFID – 15G | SWRFID-15G |
| ShockWatch RFID – 25G | SWRFID-25G |
| ShockWatch RFID – 37G | SWRFID-37G |
| ShockWatch RFID – 50G | SWRFID-50G |
| ShockWatch RFID – 75G | SWRFID-75G |
