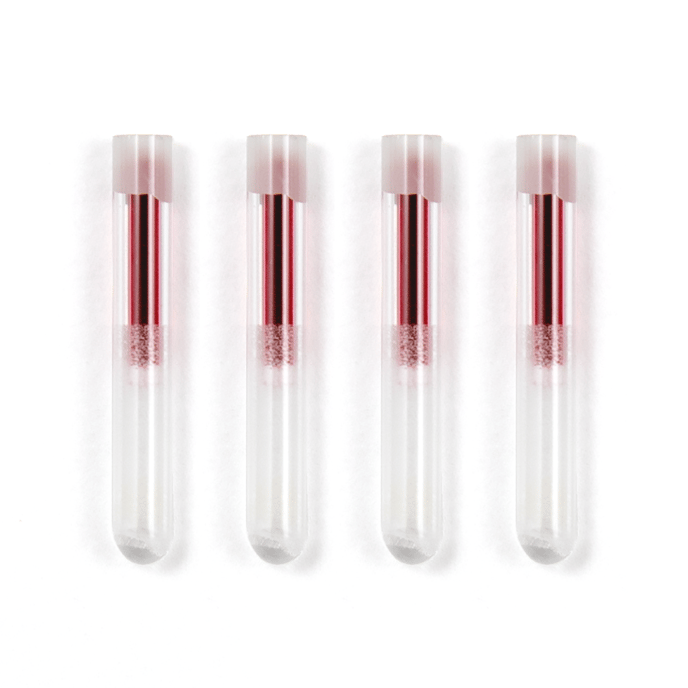

ShockWatch Tubes are mechanical which means they do not require a power source. These devices can be integrated into system hardware without the worry of additional power consumption. Simply mount the indicator into your product and you are ready to go.
ShockWatch tubes are selected according to the impact amplitude and duration which define the damage profile of a product. Heavier products are more likely to be damaged by lower g amplitudes with longer durations while lighter products are more susceptible to higher g amplitudes with shorter durations.
Applications
Aerospace and Defense | HVAC | Construction – Supplies and Fixtures | Electronics | Sports Equipment | Equipment Rental | Medical Devices and Supplies | Industrial Equipment | High Tech Equipment | Robotics | Office Equipment | Furniture and Fixtures | Scientific and Technical | Instruments | Computer Hardware | Electronics | Lasers | Tools
Specifications
| Indication Type | Visual, irreversible white to red color change |
| Activation Method | Product is live at point of manufacturing |
| Operating Temperature Range | -13°F to 176°F | -25°C to 80°C |
| Impact Sensitivity | See activation graphs for details |
| Activation Angles | Near 360° impact sensitivity. See Planar and 3D activation angle graphs |
| Impact Duration | 0.5 to 50 msec |
| Accuracy | +15% at 68°F | +15% at 20°C, 1 ATM |
| Responsiveness | Responds to Single Impact |
| Product Life | 2 years from date of manufacture when stored at 68°F | 20°C, 1 ATM |
| Dimensions Small Devices |
0.675” +0.01” x 0.094” +0.002” |
| Dimensions Large Devices |
0.750” +0.01” x 0.135” +0.003” |
| Large Devices (Lower sensitivities) | T-85, T-75, T-65, T-55 |
| Small Devices (Higher sensitivities) | T-47, T-35, T-30 |
| Weight – Varies by sensitivity | 0.2608 grams +5% or less |
