Thermax Product Overview

The Thermax Irreversible Temperature Recording Label is a series of temperature test labels that will permanently record the highest temperature reached by the label.

These self-adhesive labels consist of a series of temperature-sensitive elements sealed between heat-resistant substrates with transparent windows. Each element changes color distinctly as its rated temperature is exceeded. The changes are irreversible, providing a temperature history of the surface being monitored. The labels will not de-laminate when removed for reference and can be attached to an inspection report to serve as a permanent record.

The temperature-sensitive elements are phase-change indicators that use the sharply defined melting points of a series of specially purified organic chemicals to give the unique, high-precision, color change effects. Each temperature element uses a different chemical compound and is made separately by applying a coating containing the chemical to a special absorptive paper substrate. When the rated temperature is exceeded, the chemical melts and is absorbed by the substrate, causing a permanent color change. Up to ten elements can be combined together on a single label.



A00000005850_enc-37

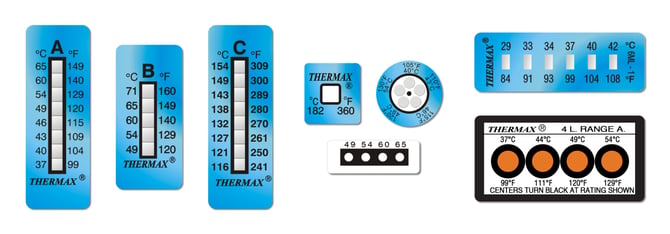

Thermax Product_Family Shot_Horizontal

Products

Thermax Level 10 Strips

Size: 2.00” x 0.7” (51x18mm)
Type: Vertical, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Thermax Level 8 Strips

Size: 2.00” x 0.7” (51x18mm)
Type: Vertical, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Thermax Level 6 Mini Strips

Size: 0.47” x 1.26” (12x32mm)
Type: Horizontal, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Thermax Level 5 Strips

Size: 2.00” x 0.7” (51x18mm)
Type: Vertical, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Thermax Level 4 Strips

Size: 0.91”x1.77" (23x45mm)
Type: Horizontal, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Thermax Encapsulated

Size: 0.47” x 0.51” (12x13mm)
Scale: °F and °C
Range: (Sold in units of 50)
Type: Single temperature indicator shows when maximum temperature has been achieved. Self-adhesive.

Thermax Level 4 Micro Strips

Size: 0.15” x 0.43” (4x11mm)
Type: Horizontal, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Level 5 Clock Indicator

Size: 0.55” Dia. (14mm)
Type: Circular, Self Adhesive
Scale: °F and °C
Range: (Sold in units of 10)

Specifications

Temperature Range 84°F to 554°F | 29°C to 290°C
Accuracy Less than 212°F is ±2°F | 100°C is ±1°C
212°F to 309°F is ±3°F | 100°C to 154°C is ±1.5°C
Greater than 309°F is ±7°F | 154°C is ±4°C

Silver to Black Color Change

 Below 399°F | 204°C
Orange to Black Color Change  Above 410°F | 210°C

Last Black Event is the Highest Temperature Achieved
