TiltWatch XTR Product Overview

The TiltWatch® XTR is single-use tip indicator used to monitor goods that must remain upright

The TiltWatch® XTR is a single-use tip indicator used to monitor goods that must remain upright. Once applied to the packaging, the TiltWatch XTR will provide evidence of mishandling if the shipment is tipped. However, the tilt indicator remains unaffected by movement resulting from normal handling conditions.

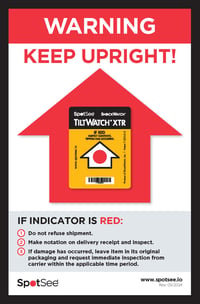

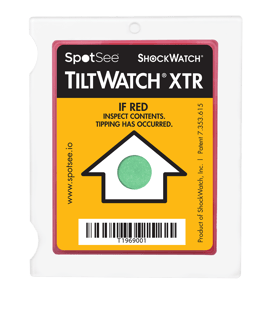

TiltWatch XTR_UnactivatedTiltWatch XTR_Companion Label

Product Change Notice

As part of our continued commitment to improving traceability, compliance, and user experience, we will be discontinuing all non‑QR shock and tilt indicator products on August 31, 2026.

The following products will be replaced by their QR-enabled versions:

  • ShockWatch Label (serialized and non-serialized) → ShockWatch Label QR
  • ShockWatch 2 (serialized and non-serialized) → ShockWatch 2 QR
  • TiltWatch XTR (serialized and non-serialized) → TiltWatch XTR QR
  • All QR-enabled indicators include a visible serial number on the product.
  • Private label products are not impacted by this change (at this time) and will continue to be available without interruption. The SpotSee Team will work with each customer that purchases non-standard (e.g., private label) products to develop a transition plan and timeline.

Key dates:

  • August 31, 2026: Last day to purchase non‑QR products
  • September 30, 2026: Last shipment of non‑QR products

Benefits of transitioning to QR-enabled indicators:

  • Additional reduction in shipping damage and return rates via increased supply chain visibility
  • Improved traceability for compliance and supply chain troubleshooting
  • Cloud-based data storage with an open API for easy integration into current TMS or Logistics platform
  • User-friendly scanning, no app required
  • Same trusted visual notification
  • Authentication of both the indicator and the product being shipped
  • SpotSee Logo Update
  • Change the bar code size to 29.64mm in width to meet international bar code standards
  • White Box for the bar code and serial number change from 20.809mm X 5.211mm to new size 33.66mm X 9.47mm.

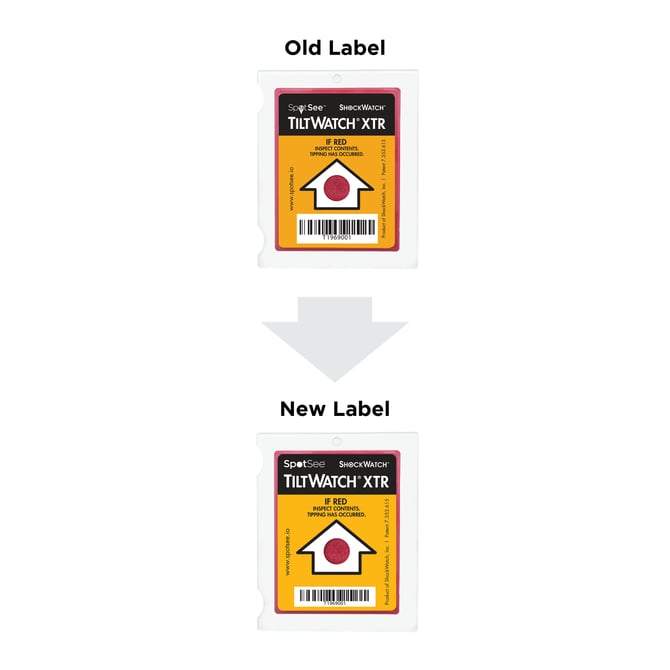

TiltWatch XTR_OLD vs NEW_Image

Specifications



Activation Angle

 80° ±5° from vertical

Monitoring Range

 Single plane
Adhesive 2 mil high tack acrylic
Humidity Tolerance 5% to 99% non-condensing
Temperature Tolerance -40°F to 140°F | -40°C to 60°C
Composition Rigid polystyrene housing with non-magnetic steel indicator
Arming Arms coincident with removal of adhesive liner
Size 2.92 in x 2.37 in x 0.21 in | 74.27 mm x 60.31 mm x 5.29 mm
Installation Pressure-sensitive adhesive or holes to accommodate screws, nails, or staples
Customization Cobranding is available on orders of over 5,000 pieces

Adhesive Shelf Life

2 years

Part Numbers



TiltWatch XTR 24101
TiltWatch XTR Companion Labels (200) 26102
TiltWatch XTR Companion Labels (500) 26103
