TiltWatch Plus Product Overview

TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred.

TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred.

TiltWatch Plus consists of three separate indicators in a single unit:

  • One section indicates the degree of tilt to the left
  • The second section indicates the degree of tilt to the right
  • The third section indicates total overturn


    TiltWatch Plus    SW129_TiltWatch_Companion Label

Product Change Notice

  • SpotSee Logo Update
  • Change the bar code size to 29.64mm in width to meet international bar code standards
  • White Box for the bar code and serial number change from 33.02mm X 9.779mm to new size 33.66mm X 9.47mm

  • Adhesive Change to Fasson® 60# Semi-Gloss EliteTM FSC®/TL2/40#SC
    Change Notice Documentation

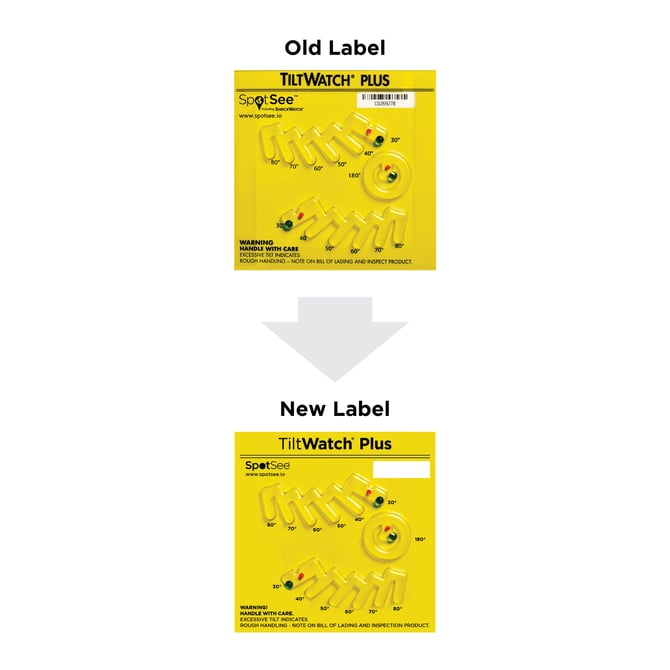

TiltWatch Plus_OLD vs NEW_Image



Specifications



Activation Angle 10° increments from 30° axis (±5°)
Monitoring Range Single plane and rollover
Adhesive 1 mil high tack acrylic
Humidity Tolerance 5% to 99% noncondensing
Temperature Tolerance -40°F to 140°F | -40°C to 60°C
Composition Clear PTE housing and plastic indicator
Size  4.6 in x 4.6 in x 0.3 in | 116.84 mm x 116.84 mm x 7.62 mm
Installation  Pressure-sensitive adhesive exposed when liner and arming pin are peeled away
Adhesive Shelf Life  12 months (before application)

Part Numbers

TiltWatch Plus (includes Companion Labels) 24114
